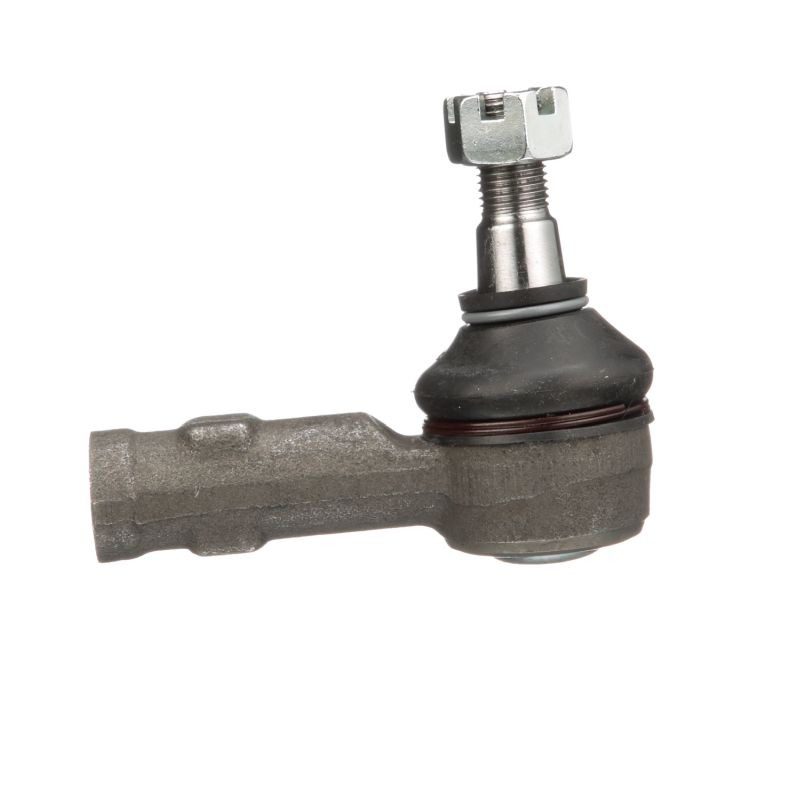

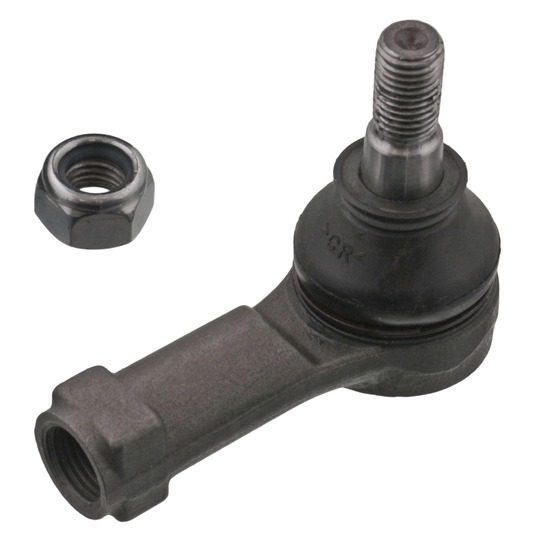

56820-47500 TIE ROD END Guide
Light Commercial Truck Specialist | Hyundai Porter II, H100 & Kia Bongo 3
Service Note: Total steering control depends on synchronous link performance. When replacing an outer tie rod, we highly advise inspecting your steering gear boots, inner axial links, and front suspension Front Stabilizer Links for maximum on-road safety.
Advanced Specs: 56820-47500 TIE ROD END
Commercial truck platforms rely on heavy-duty spherical ball joints to transfer power steering input without binding or flexing under intense structural cargo loads. This original-equipment specification 56820-47500 TIE ROD END features a premium case-hardened ball stud seated within a low-friction polymer matrix to deliver exceptionally fluid steering tracking over long lifecycles.
Vehicle Fitment
- Brand: Hyundai / Kia Genuine Spec
- Model Base: Porter II, H100 Truck, Bongo 3, K2500
- Position: Outer Steering Mechanism (LH / RH Fitting)
- Era Range: 2004 – Present Platform Generations
Technical Specs
- Core Build: Die-Forged, High-Tensile Carbon Steel
- Core Dimensions: ~73 mm Housing Length / 13.6 mm Cone
- Thread Specs: M16x1.5 (Internal) / M12x1.25 (External)
- Protection: Sealed Lubrication Structure & CR Dust Boot
Verify Fit
Always use the current settings for the WhatsApp link and its box. Please contact us with your VIN to confirm this specific part is correct for your vehicle.
