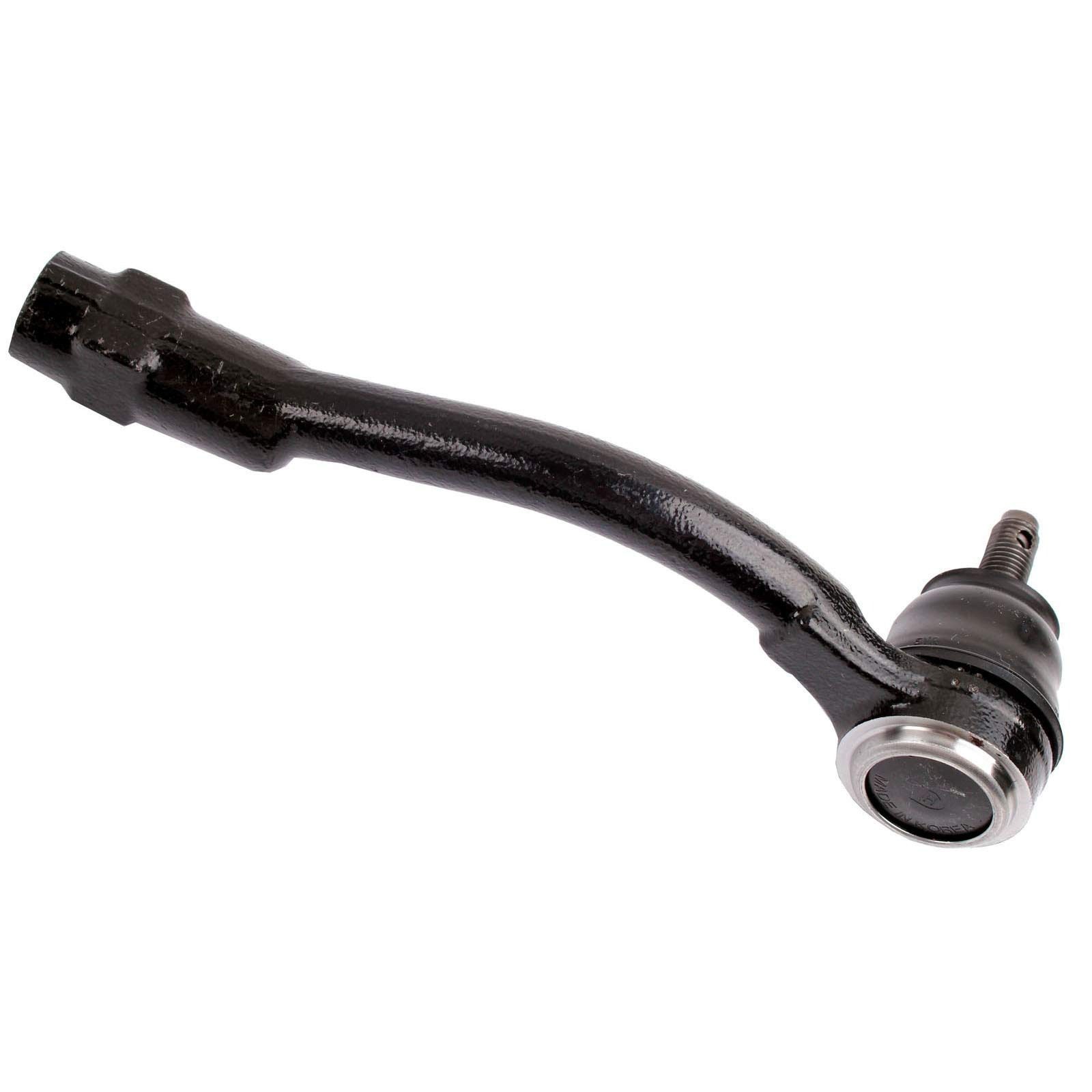

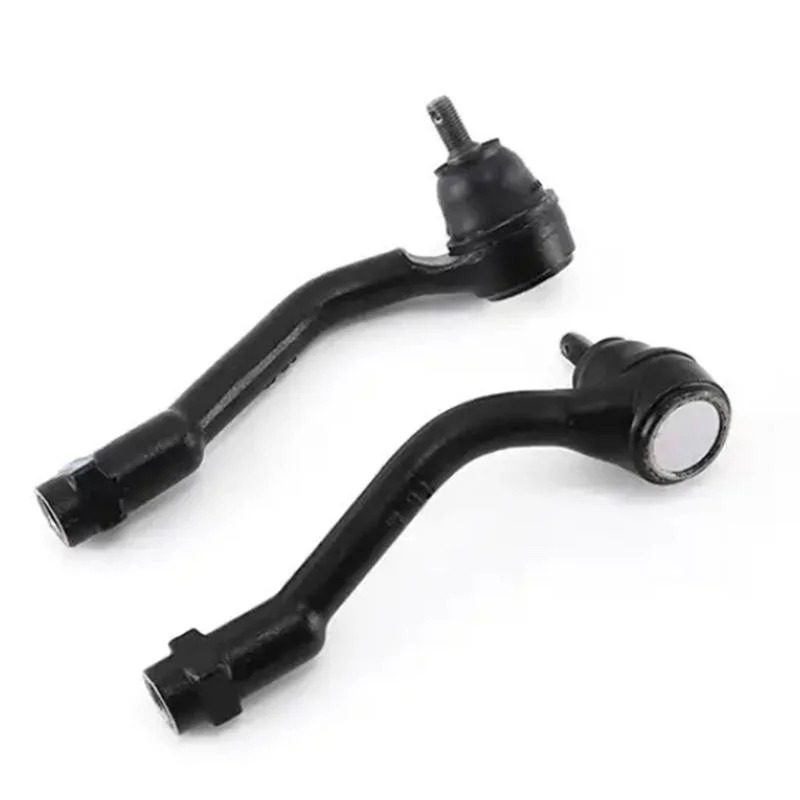

56820-2K000 TIE ROD END Guide
Steering Kinematics | Premium Hyundai & Kia Left-Hand Outer Linkage
System Safety Note: Maintaining zero-tolerance tie rod connections is essential for safe vehicle handling and proper tire wear. When replacing a worn outer joint to address steering play or lane drift, we recommend inspecting your inner axial joints, steering rack boots, lower control arm bushings, and matching Tie Rod Ends to fully restore factory steering feel.
Advanced Specs: 56820-2K000 TIE ROD END
Compact passenger hatchbacks and crossover vehicle platforms rely on high-durability outer tracking joints to maintain steering precision over irregular surfaces. This premium 56820-2K000 TIE ROD END uses high-grade forged alloy steel paired with hardened micro-finished ball studs to offer excellent pivot reliability and long-term handling stability.
Vehicle Fitment
- Brand: Hyundai / Kia Genuine OES Alternative
- Model Applications: Kia Soul (AM), Venga, Hyundai i20 / ix20
- Position: Front Left-Hand Axle (LH / Driver Side)
- Chassis Years: 2008 – 2013 Platform Focus Coverage
Technical Dimensions
- Overall Length: ~188mm Structural Dimension
- Internal Sleeve Thread: M16 x 1.5mm Female (Right-Hand)
- Outer Pin Thread Stud: M10 x 1.25mm Metric Pitch
- Mating Cone Size: 13.4mm Precision Base Taper
- Opposite Side Component: Matches Factory Right Hand Spec
56820-2K000 TIE ROD END FAQ
How do I know if my front left outer linkage has failed?
▼
Common indicators include a vague or loose dead play area in the steering wheel center, accelerated feathering wear patterns on the front left tire edges, or sharp clicking sounds when negotiating low-speed driveway transitions.
Why while am touching question then only i want to show answer?
▼
This interactive FAQ layout keeps technical content hidden until you select a question, ensuring a clean and modern page design.
Confirm 56820-2K000 TIE ROD END Setup
Always use the current settings for the WhatsApp link and its box. Please contact us with your VIN to confirm this specific part is correct for your vehicle.
